Frame Scaffolding Tower

Short Description:

Frame scaffolds are the most common type of scaffold because they are versatile,


Product Details

Product Tags

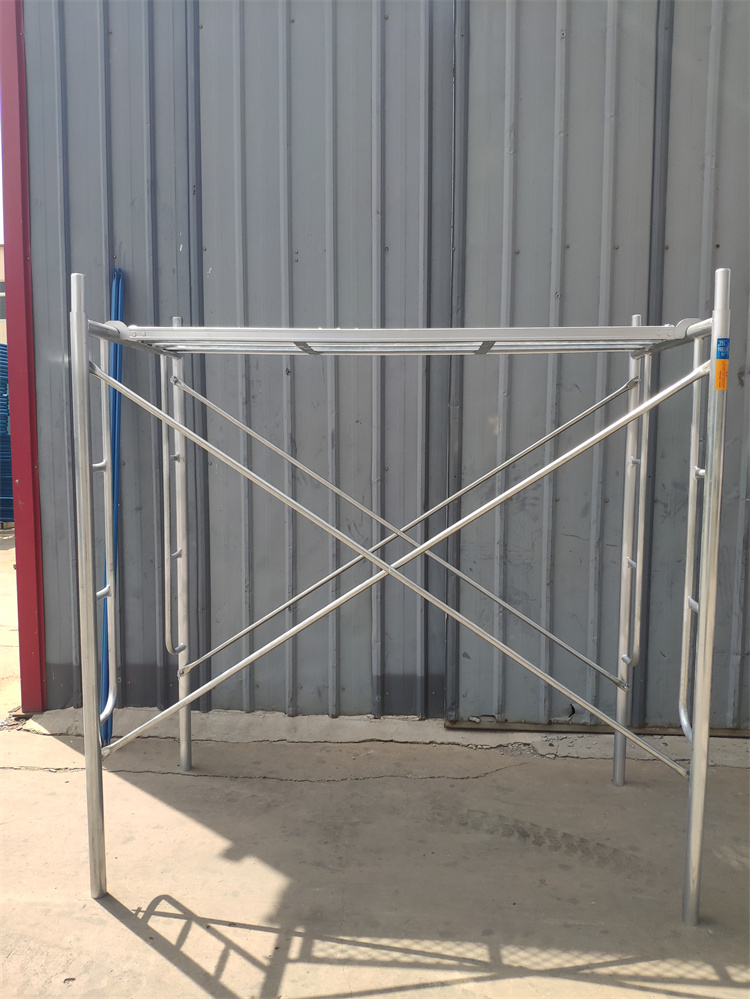

Frame scaffolds are the most common type of scaffold because they are versatile, economical, and easy to use. They are frequently used in one or two tiers by residential contractors, painters, etc., but their modular frames can also be stacked several stories high for use on large-scale construction jobs.

Material: Q195/Q235
Main Tube: OD 42mm, thickness: 2.2mm;

NameSpecificationUnit Weight kg/pc
Main Frame


Main tube: 42*2.2mm

Inner tube: 25*1.5mm



1219*1930mm15.33
1219*1700mm13.79
1219*1524mm12.73
Main Frame


Main tube:42*2.0mm

Inner tube: 25*1.5mm



1219*1930mm14.39
1219*1700mm12.93
1219*1524mm11.69
Main Frame


Main tube:42*1.8mm

Inner tube:25*1.5mm



1219*1930mm13.42
1219*1700mm12.06
1219*1524mm10.88
